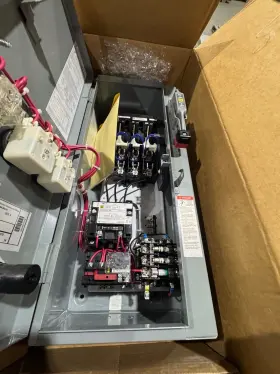

SQUARE D 8538SB12V80CFF4H30P51P52TX11 Coil Phase Fusible 120V Fused Combination Motor Starter

( Brand: Square D ), ( Type: Circuit Breaker Combination Starter ), ( Manufacturer Part Number: 8538SB12V80CFF4H30P51P52TX11 ), ( Input Voltage: 120 V )

Review SQUARE D Square8538sb12v80cff4h30p51p52tx11 New Size 120v Coil Phase Fusible Fused Combination Motor Starter

The Square D 8538SB12V80CFF4H30P51P52TX11 120V Coil Phase Fusible Fused Combination Motor Starter is a versatile and robust electrical component designed to safely and efficiently start and control inductive loads such as motors. This starter is part of the Square D Commercial and Industrial (C&I) range, known for its reliability and durability in demanding commercial and industrial applications.

The 8538SB12V80CFF4H30P51P52TX11 is a fusion type starter, which means it combines both overload and short circuit protection in a single unit. It is rated for 120V AC voltage and comes with a separate auxiliary contactblock for auxiliary device control. The unit features a copper-bonded, heat-sensitive fusible link for short circuit protection. This link melts under short circuit conditions, interrupting the current flow and providing protection against damaging overcurrents.

The combination motor starter also includes a manually operated overload relay that trips when the motor overloads. This built-in overload protection helps ensure long motor life and prevents costly motor damage. The overload relay is rated for 80 amps at 125% for twenty minutes, providing sufficient capacity for most industrial motor applications.

The starter meets various safety and industrial standards, including UL Type S and CSA C22.2 No. 241-16 R1 requirements. The heavy-duty construction of the Square D 8538SB12V80CFF4H30P51P52TX11 ensures its ability to withstand rigorous use in industrial environments. The unit is sized at 4.5 x 6.3 x 3.4 inches, making it compact and easy to install in limited spaces.

The Square D 8538SB12V80CFF4H30P51P52TX11 Coil Phase Fusible Fused Combination Motor Starter is an excellent option for businesses seeking a reliable and cost-effective solution to their motor starting needs. Its integration of both overload and short circuit protection makes it a worthy investment for any industrial application demanding the highest level of safety and performance.

Pros and Cons of Buying a Square D 8538SB12V80CFF4H30P51P52TX11 120V Coil Phase Fusible Fused Combination Motor Starter

A Square D 8538SB12V80CFF4H30P51P52TX11 120V Coil Phase Fusible Fused Combination Motor Starter is an electrical device used to protect and control the operation of three-phase or single-phase motors. It combines overload and short-circuit protection in one starter enclosure. Let's discuss its pros and cons.

1. Cost-effective: This combination starter is more cost-efficient than separate overload relays and fuses or other protective devices.

2. Safety feature: The fusible links provide short-circuit protection, which helps protect the motor and the electrical system from damage.

3. Space-saving design: Having the overload relay and fuses in one enclosure helps save space in electrical panels.

4. Easy installation: The combination starter typically comes pre-wired and pre-mounted in the enclosure, reducing installation time and effort.

5. Adjustable overload settings: The overload characteristics can be adjusted to meet specific motor application requirements.

1. Higher initial cost: Although combination starters save money due to fewer components, their upfront cost might be higher than a traditional overload relay and fuse setup.

2. Limits expansion: Installing a combination starter for a single motor might limit the possibility of adding more motor starters in the same electrical panel without additional panel space for the larger starter enclosures.

3. Limited overload capacity: Combination starters are often limited to specific overload capacities, which might not be suitable for larger motors requiring higher capacity overloads.

4. Reduced flexibility: The fixed fusible links in a combination starter offer less flexibility compared to adjustable fuses or resettable overload relay trip units, which can be adjusted as the motor's operating conditions change.

The Square D 8538SB12V80CFF4H30P51P52TX11 120V Coil Phase Fusible Fused Combination Motor Starter has its advantages and disadvantages. The cost savings from its compact design and integrated overload and short-circuit protection make it a practical choice for various applications. Alternatively, the limitations in expansion capabilities, overload capacity, and flexibility might be considerations for specific applications. The decision to purchase this motor starter depends on the unique requirements and electrical panel constraints of your specific application.

When deciding to buy a Square D 8538SB12V80CFF4H30P51P52TX11 120V Coil Phase Fusible Fused Combination Motor Starter, consider the number and size of the motors that need to be controlled. If the installation requires fewer motor starters and the overload capacities and adjustment flexibility are acceptable, the combination starter can make an excellent cost-effective solution. However, for larger installations or more complex applications, evaluating separate overload relay and fuse solutions should also be considered. Consulting an electrical engineer or a certified electrician for advice and recommendations is always encouraged.
