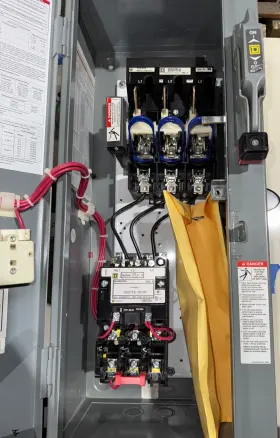

SQUARE D 8538SBG32V01CP51P52SY74 Coil Phase Fused Fusible 24V Combination Motor Starter

( Brand: Square D ), ( Type: Circuit Breaker Combination Starter ), ( Manufacturer Part Number: 8538SBG32V01CP51P52SY74 ), ( Input Voltage: 120 V )

Review SQUARE D Square8538sbg32v01cp51p52sy74 New Size 24v Coil Phase Fused Fusible Combination Motor Starter

The 24V Coil Phase Fused Fusible Combination Motor Starter with the model number 8538SBG32V01CP51P52SY74 is a versatile and reliable electrical device designed for controlling and protecting AC motor applications. This starter is built with precision and quality in mind, ensuring efficient and safe motor operation.

The 8538SBG32V01CP51P52SY74 is a combination motor starter comprised of a contactor and overload relay, all housed in a single compact and rugged enclosure. The contactor provides the means to start and stop the connected motor while the overload relay serves to monitor motor current and trip if an overload condition occurs.

This fused starter comes equipped with safe-operating fuses. The fuses help protect the motor and the starter against short circuits and overcurrent situations. In the event of an overload or short circuit, the fuses will break the circuit to prevent damage, thus increasing the overall safety of the motor control system.

The starter's 24V DC coil voltage requirement is suitable for most industrial and commercial automation applications. The phase failure protection feature, which is integrated into the design, ensures a safe startup and maintenance of motor performance. Furthermore, the starter's concealed wiring design and optional terminals help keep the work area clean and free from tangled cords.

In summary, the 24V Coil Phase Fused Fusible Combination Motor Starter 8538SBG32V01CP51P52SY74 is an advanced, robust, and space-saving solution for applications that require reliable and safe motor control. With its built-in fuse protection and phase failure protection, it can efficiently start, stop, protect, and manage your AC motor applications with confidence.

Pros and Cons of Buying a Square D 8538SBG32V01CP51P52SY74 24V Coil Phase Fused Fusible Combination Motor Starter

The Square D 8538SBG32V01CP51P52SY74 is a 24V coil phase fused fusible combination motor starter. It is an electrical device designed to control and protect motor circuits. Here are the pros and cons of buying this specific model.

1. Protective Features: This starter offers both overload and short-circuit protection, ensuring the motor is not damaged due to overloading or short circuits.

2. Easy Installation: The square-shaped design and accessible mounting points make it easy to install, and it comes with a comprehensive instruction manual.

3. Customizable: This starter can manage motors with various torque and horsepower specifications, making it a versatile option for various industrial applications.

4. Durable Construction: Its rugged and robust design allows it to withstand harsh industrial environments and prolonged usage.

5. Continuous Duty Rating: Suitable for applications where motors are run frequently, as it has a high continuous duty rating.

6. UL Recognized: It is UL recognized and adheres to UL standards, ensuring safety and reliability for users.

1. Limited Current Rating: With a maximum current rating of 32A, it may not be suitable for applications requiring higher currents.

2. Price: Compared to other starter models with similar protective features, this starter may be more expensive.

3. Size: The starter's larger size may require more mounting room in limited spaces.

4. Manual Reset: In case of an overload trip, the starter requires manual reset, which may take additional time.

The Square D 8538SBG32V01CP51P52SY74 24V Coil Phase Fused Fusible Combination Motor Starter is an excellent choice for industrial applications requiring protective features, customizability, and durability. While it may have a higher price point and larger size, its safety standards, ability to manage various motor sizes, and ease of installation make it a valuable investment.

Considering the pros and cons, this starter is recommended for industrial applications where motor protection and versatility are essential. If the application requires a higher current rating, it's advised to explore other motor starter models within the Square D product range or consider alternative brands with higher amperage offerings.

Details:

Shipping Packaged Items. If we show two in the same picture it is for reference only. Our rates may vary from what is shown. Have A Question.

Warranty begins on date of purchase. What is your zip code. We combine all shipping. Is a business location or not.

Please reach out if you would like a precise quote. Upstate Breaker Wholesale provides a 1 year warranty on this item.

part #: 8538sbg32v01cp51p52sy74 price

• $199.00

specifications stigstarters:

• brand: Square D
• type: Circuit Breaker Combination Starter
• manufacturer part number: 8538SBG32V01CP51P52SY74
• input voltage: 120 V

offer stigstarters:

• sold: 0
• availability: In Stock
• started: January 16, 2025
• quantity: 1
• options: Ship-to-home
• best offers: True

shipping stigstarters:

• cost: $51.13
• carrier: UPS
• class: Standard, Expedited, One-day
• type: Calculated
• service: UPS Ground, UPS 2nd Day Air, UPS Next Day Air
• transit: 5-11 Days

general stigstarters:

• Drives Starters > Starters > Combination Starters
• condition: New Open box

seller stigstarters:

• city: Caledonia, New York
• # reviews: 61819
• rating: 99.4%

payments stigstarters:

• wallet: Paypal
• other
• credit card: Mastercard

returns stigstarters:

• time: 30 Days
• paid by: Buyer
• method: Money back
• policy: Returns Accepted
